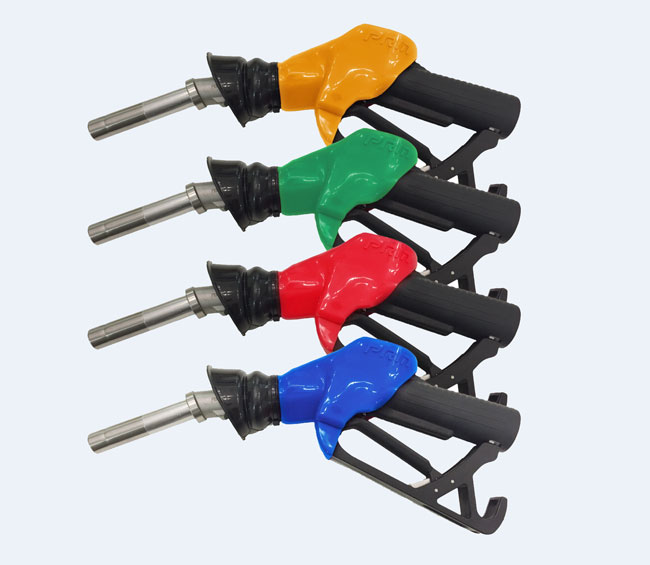

New Anti-drip Oil Self-sealing Fueling Gun
Features and Benefits:
*Anti drip.
*Single-hand operation
*Quick auto-shutoff(auto shutoff in 0.5s when nozzle inserted into oil;nozzle upward shutoff)
*Working pressure:≤0.35MPa
*Two shifts are designed to control flow rate.
*Oil and gas circuits close simultaneously.
*Vapor recovery mouth is far from auto-shutoff mouth,avoiding failure caused by sucking liquid foam.
*For all normal gasoline fuels - leaded or unleaded.;Not suitable for water and hydrous liquids, alcohols, solvents, viscous oils and diesel fuels.
*New models:Can be customized
* 100% factory tested.
*Atex certificated.
Technical Parameters
| Model No. | AGP-11B |
| Nozzle Dimension | 343×53×193 |
| Body Material | ZL111 |
| Behind Cover Material | Reinforced nylon |
| Black Vapor Recovy shield/Former Covery | PVC |
| Flow Range | 0-45L/min |
| A/V Ratio | 1:1-1.2 |
| Vapor-liquid Ratio Adjust Method | Mechanical |
| Working Pressure | ≦0.35Pa |
| Conductive resistance | ≤5Ω |
| Airtightness | 0.3Mpa without leakage |
| Auto Shut-off Time | ≤0.5s |
| Working Temperature | -40-+55℃ |
| Security | Self Shut-off without pressure static electricity conductive |
| Package Data | Each Nozzle with a gift box then 5 Pcs with a brwon Box | ||
| Packing method | Size | N.W(kg) | G.Wkg() |
| 1pcs/gift box | 405*185*60 | 1 | 1.2 |
| 5pcs /brown carton | 500*280*250 | 5 | 6 |
