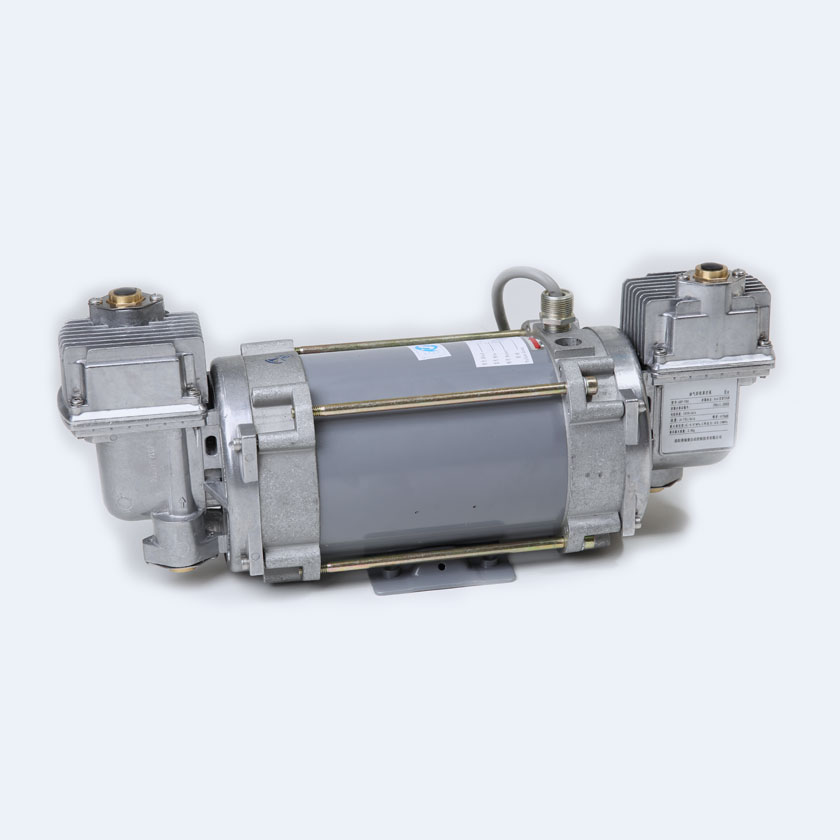

Vapor Recovery Vacuum Pump,double
Features and Benefits
*With strong air exhaust capacity,gas-liquid ratio keeps beyond the standard requirments in the refueling speed 45l/min.
*Pump on/off control comes from electromagnetic valve signal,the control circuit is simple and reliable.
*Drive shaft and motor are directly connected,the motor rotation is optional.
*Self lubricating soft piston,low noise and good wear resistance with long service life.
*Die-casting aluminum shell,compact structure, reasonable layout, easy installation and maintenance
*Selective of single pump head or double pump heads.
*100% factory tested.
*CNEX and Atex certificated.
| Technical Parameters | |
| Model | ARP-70A |
| Resistance to Pressure | 0.3 Mpa |
| Working Pressure | 0.11-0.14Mpa |
| Max Flow rate | 70L/min（Single）140l/min(double) |
| Max.Vacuum | 0.07MPa |
| Voltage | 380V/220V |
| Frequency | 50HZ |
| Moter Power | 370W |
| Rotation Speed | 2820r/min |
| Noise Sound | <70dB |
| Dimension of inlet and outlet | G1/4'' Internal Screw Thread |
| Working Temperature | -40° C ~+55° C |
| Ex-proof | Exd ⅡB T3 Gb |
| Certificate | CNEX/Atex Certificated |
| Package | Each Vacuum pump fixed by foaming,then in a carton. | |||
| Model | Size | N.W(kg) | G.W(kg) | |
| Voltage | Single/Double | |||
| 380V | Single | 365*275*245 | 12.32 | 13.05 |
| Double | 490*275*245 | 14.22 | 14.95 | |
